Tips for Allen-Bradley instrument board Plan

 DMC has broad experience programming, charging, and planning control boards with Allen-Bradley equipment. During the arranging interaction, we will assist with directing equipment choice and ensure that every part is wired appropriately, exploiting Rockwell controls highlights.

This blog features some of our number one Allen-Bradley equipment and the best approach to utilize it.

ControlLogix

When working with ControlLogix, recollect there are distinctive correspondence modules depending on the model. the most up to date ControlLogix PLCs (5800 series) have installed EtherNet/IP Ports where the past plans (5700 series) didn't . because of this, a more seasoned model might have extra correspondence cards added, which could lead on to losing an opening where you'd need a further module.

Contemplate future extensions while picking the rack/case size. Growing to extra chasses would require another force supply, correspondence module, and case.

Further, consistently make sure to see all IO or correspondence modules to shape sure they're sufficiently close to an impact supply. In our plans, we endeavor to put correspondence modules nearest to the PLC and Force supply.

ControlLogix 5580 regulators

L16 through L27 CompactLogix PLCs have some inserted IO which makes them ideal for supplanting MicroLogix PLCs. They likewise permit you to include grow their IO with extra modules. Notwithstanding, the L16, L18, and L19 series require 1734 IO Modules, which are POINT I/O.


The L30 or more utilize the quality CompactLogix 1769 series IO modules, and do exclude any inserted IO.

IO Determinations

POINT I/O modules are our top choice to use for distant IO and for PLC board IO because of their straightforwardness. recall to put both the actual modules and accordingly the base modules, inside the BOM. you'll wire gadgets into the base modules, and since they're discrete things, making changes are frequently exceptionally simple.

It is acceptable practice to recall of the office utilization and in this manner the quantity of cards. this might help decide whether you might want to highlight a 24V force expansion to your rack. I notice comparative ideas inside the ET200SP IO part of my Siemens instrument board configuration blog.

Whatever you select to pick for IO choices, I may suggest utilizing Rockwell's Coordinated Engineering Manufacturer and Proposition Attempts to help you select your gear. It assists us with picking IO modules, and affirms I incorporated the terminal bases.

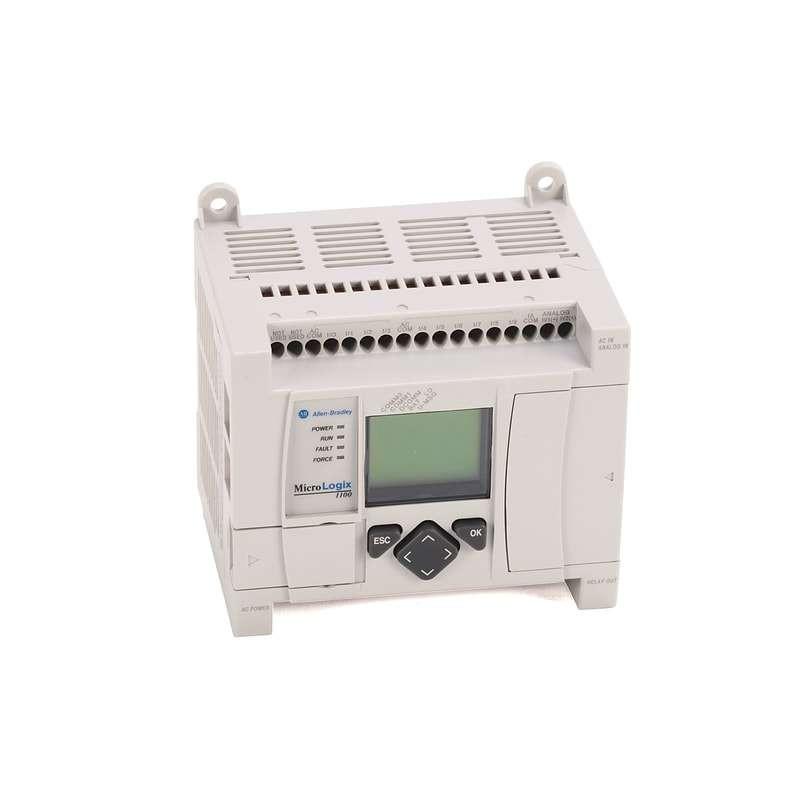

Overhauling from MicroLogix or SLC500

In case you're thinking about overhauling from MicroLogix or SLC500, there are numerous different things to guage prior to settling on the decision . These measurements incorporate the measure of labels, measure of programming (rungs and schedules), measure of IO, kind of IO, the amount of systems administration and arranged gadgets, and programming prerequisites.

A few proposals for redesigning include:

The Micro800 series PLCs are a magnificent alternative for supplanting more modest MicroLogix PLCs

The CompactLogix more modest series with installed IO are a great alternative for supplanting bigger MicroLogix PLCs

The CompactLogix bigger series are a magnificent alternative for supplanting more modest SLC500 PLCs

ControlLogix ought to be wont to supplant enormous SLC500 PLCs

For More Info :-

Allen-Bradley 22A-B8P0N104

Allen-Bradley 22A-D4P0N104
